Series 6

Select the perfect device to make your content stand out!
Here's a quick overview of the device models we typically recommend and are well-acquainted with:

Manufacturer / Model seriesPlatform / FWChromium version
BrightSign Series 6 XD, HD, or XS9.1.99120

Device line-up overview​

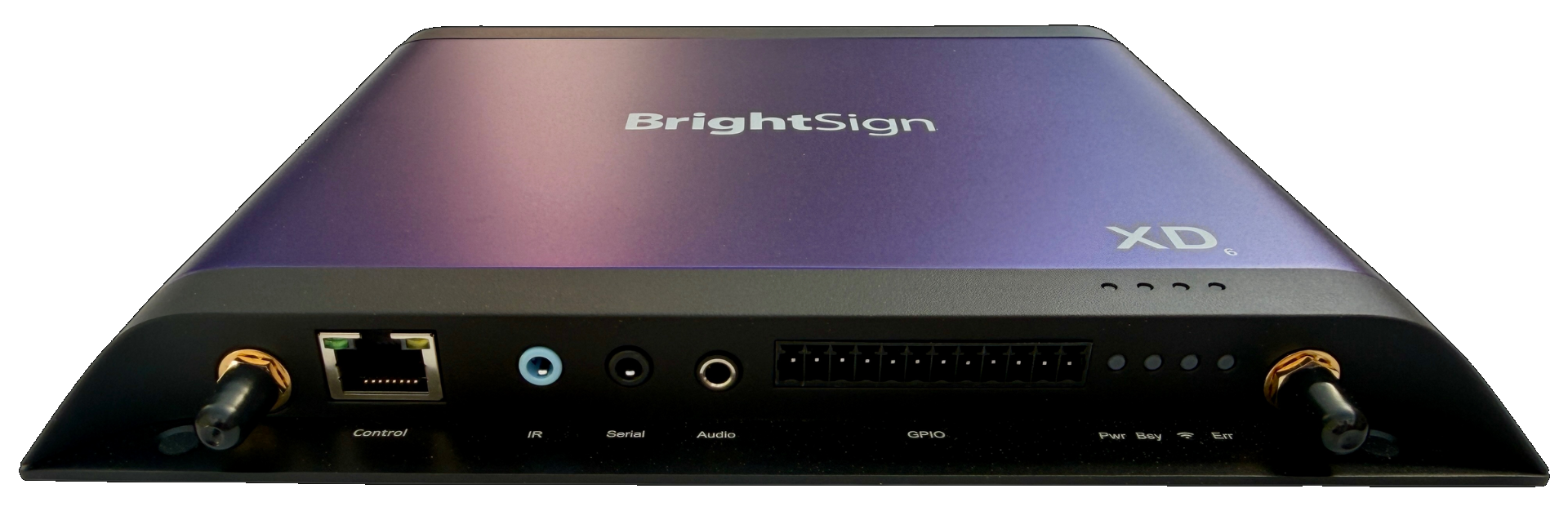

More about Brightsign XD product line


  • Max. 2 Full HD or 2 4K videos at once (dual 4K 10-bit at 60p).
  • 10-bit HDR support.
  • Integrated Neural Processing Unit (NPU) for on-device AI applications.
  • Expandable storage via M.2 SSD.
  • XD1036 model includes an expanded I/O package (additional ports).
  • Wallboard sensor handling on the XD1036 model via USB type A or type C, 3.5mm RS-232 Serial Port, GPIO ports, and IR control.
  • Power over Ethernet Plus (PoE+).

Known limitations on BrightSign series 6 devices​

BrightSign Series 6 players no longer support per widget rotation. Only the entire display can be rotated.

Please note

This means non Hardware Accelerated player will rotate but the media source inside them will not

Currently supported firmware versions for JSCore BrightSign players​

Known firmware issues​

We provide support for the series 6 devices with firmware version 9.

Please note

However, please be aware of firmware and platform limitations when using these devices.

The only firmware version we currently recommend is 9.1.99. Most previous firmware versions have known issues, so we advise updating your Series 6 devices to 9.1.99 together with the latest JSCore application.

We are actively collaborating with BrightSign to address reported issues in the latest firmware.

  • Video synchronization puts strain on the devices and can cause crashes
Please note

Disabling video synchronization with Advanced device configuration can prevent some of the aforementioned crashes due to video synchronization strain.

However, please be aware that it can cause unexpected behavior with video synchronization. Page changes will still be synchronized, between two devices, but there will be no guarantee that videos start and finish at the same time.

To read more about synchronization on BrightSign please visit our article

{
	"configuration": [
		{
			"type": "VIDEO_SYNC",
			"enabled": false
		}
	]
}

9.1.99​

This is the only firmware version we currently recommend for Series 6 devices. Most previous firmware releases have known issues, so we advise running 9.1.99.

Series 6 players (XD6, HD6, XS6) share the same BrightSignOS build, so a single firmware package covers all of them:

Previous firmware releases​

For all the previous firmware releases you can visit BrightSign's official page

Due to being a constantly evolving codebase we do not wish to embark on keeping our own database of recommended firmware versions.

Instead, we recommend downloading it from the following official source: https://www.brightsign.biz/resources/software-downloads/

Which contains all the downloadable BrightSignOS for each player type

BrightSign_OS

Latest JScore application​

Please note

Series 6 devices are only supported by the JSCore application, Legacy application versions do not run on Series 6 devices

You can find out about our latest JSCore application in our changelogs.

To learn more about JSCore in general click here.
