Microsoft cloud services

This article describes how to integrate with Microsoft (using its API) and use the received data in multiple ways in Wallboard.

Wallboard provides two ways to access data from the Microsoft ecosystem:

• Delegated access, an app acting on behalf of a signed-in user.
• App-only access, an app acting with its own identity.
  • Also called: Service Principal / Service Account

Learn more

Access data on behalf of a signed-in user

info

Wallboard can only access data that the connected user has access to.

Access user's personal data

1. Add new Microsoft credential
2. Select the scope
3. Set the tenant type to Personal Account
4. Click on Authenticate
5. Follow the steps in the pop-up

Access SharePoint resources (user is part of a corporate tenant)

1. Add new Microsoft credential
2. Select the scope
3. Set the tenant type to Work or School Account
4. Choose SharePoint in the add modal
5. Click on Authenticate
6. Follow the steps in the pop-up

Important

Connecting a SharePoint account requires admin consent!

Learn more

The actual setup flow can be different based on your configuration at Azure.

Learn more

Requested permissions

With delegated access you do not add permissions to an app registration — Wallboard requests the scopes it needs when the user signs in, and the user (or a tenant admin) consents to them. The lists below are what the consent prompt asks for, so you can review them in advance, or decide whether to grant admin consent on behalf of your users.

Every set also includes offline_access and openid.

Personal Account

What you are connecting	Scopes	Admin consent
Drive (folder sync)	User.Read, Files.Read.All	No
Calendar	User.Read, Calendars.ReadWrite	No
Excel workbook	Files.Read.All	No
Teams	Chat.Read	No
Power BI	Report.Read.All, Dataset.Read.All, Workspace.Read.All, Dashboard.Read.All	Power BI tenant settings apply

Work or School Account

What you are connecting	Scopes	Admin consent
Drive (folder sync)	Group.Read.All, Sites.Read.All, Files.Read.All	Yes — for Group.Read.All
Calendar	Group.Read.All, Sites.Read.All, Calendars.ReadWrite.Shared	Yes — for Group.Read.All
SharePoint Lists	Sites.Read.All, Files.Read.All	No
SharePoint News	Sites.Read.All, Group.Read.All, Files.Read.All	Yes — for Group.Read.All
Excel workbook	Sites.Read.All, Files.Read.All	No
Teams	Chat.Read	No
Active Directory users	User.Read.All, Presence.Read.All	Yes — for User.Read.All
Power BI	Report.Read.All, Dataset.Read.All, Workspace.Read.All, Dashboard.Read.All	Power BI tenant settings apply

note

The Power BI scopes belong to the Power BI API (analysis.windows.net), not to Microsoft Graph.

warning

The Admin consent column is what Microsoft requires by default. Many tenants switch user consent off entirely, and there every scope needs an administrator to approve it regardless of what the column says. A "No" therefore means your users can consent themselves if your tenant allows them to, not that an administrator is never involved.

Access data as a Service Principal (Service Account)

Wallboard gives the option to use service principals (app-only access) besides the on behalf of a signed-in user (delegated) method to access data.

Service principals

An Azure Active Directory (Azure AD) service principal is the local representation of an application object in a tenant or directory. It's the identity of the application instance. Service principals define application access and resources the application accesses. A service principal is created in each tenant where the application is used and references the globally unique application object. The tenant secures the service principal sign-in and access to resources.

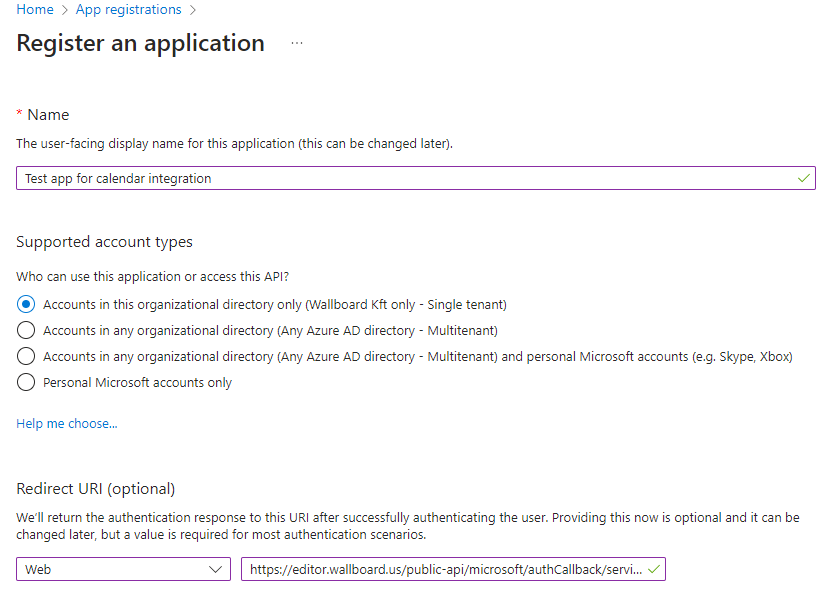

Register an App in Azure AD

To have a Client ID and Client Secret first you have to create an application registration in Azure AD.

Navigate to App Registrations

Click on New Registration

info

The redirect URI must point to the actual Wallboard server (replace [server_domain]).

https://[server_domain]/public-api/microsoft/authCallback/serviceAccount

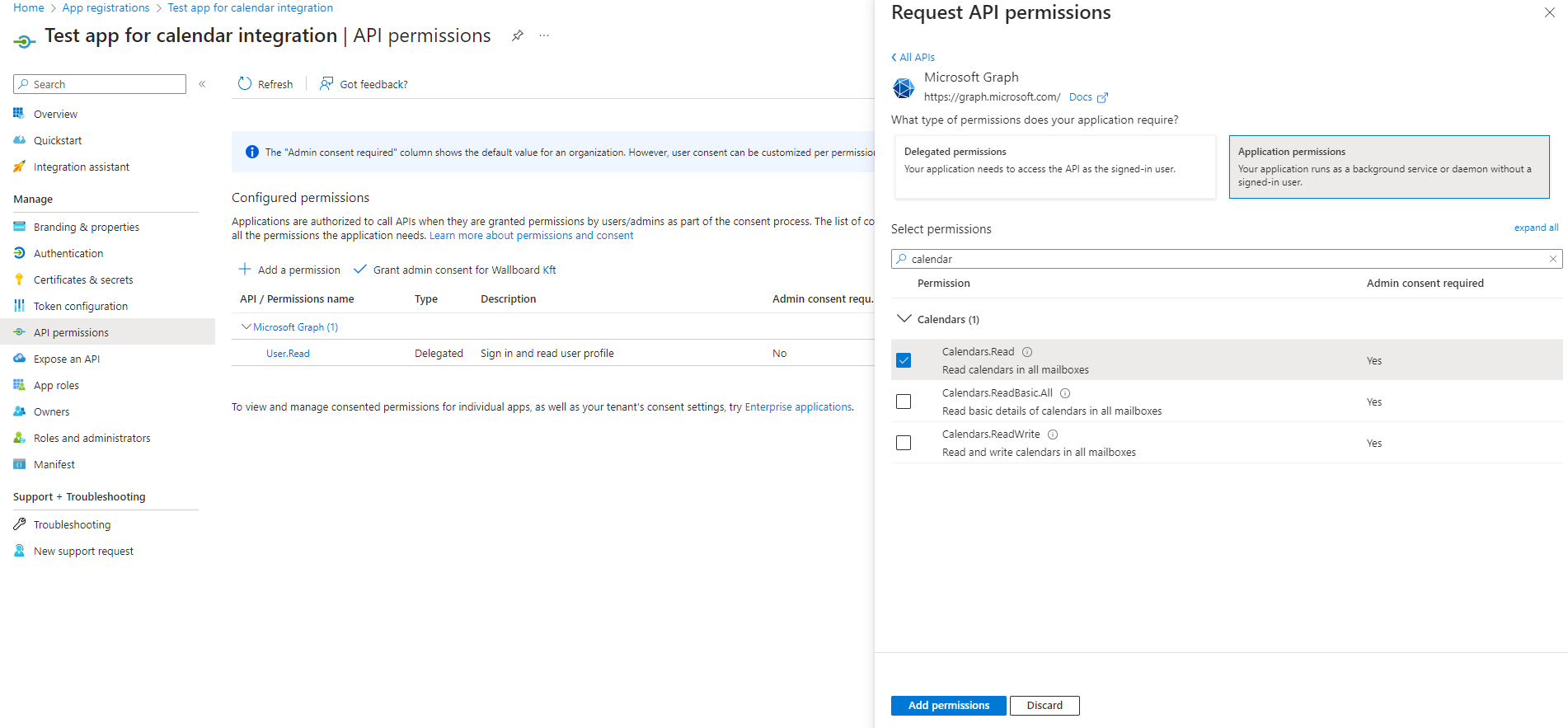

Setup permissions

Add the necessary permissions (scopes) to the application:

The following permissions are required in the different use cases:

Every application permission requires admin consent — app-only access has no user-consent path at all.

What you are connecting	Permissions	Admin consent
Calendar, read-only (as a datasource)	Calendars.Read	Yes
Calendar with event editing (needed for meeting room solutions)	Calendars.ReadWrite	Yes
Drive (folder sync, from a user's or a site's drive)	Sites.Read.All, Files.Read.All	Yes
SharePoint Lists (as a datasource)	Sites.Read.All, Files.Read.All	Yes
Excel workbook (as a datasource)	Sites.Read.All, Files.Read.All	Yes
Power BI	No specific permission required — see below	Power BI tenant settings apply

info

In order to access a Power BI workspace with a service principal you need to

• Enable Allow service principals to use Power BI APIs
  • Settings -> Admin portal -> Developer settings
• Add the service principal to your workspace with Member role (use the Display name of the created application)
  • Select workspace -> Manage access -> Add people and group

Learn more

To allow embedding in a content:

• Enable Embed content in apps
  • Settings -> Admin portal -> Developer settings

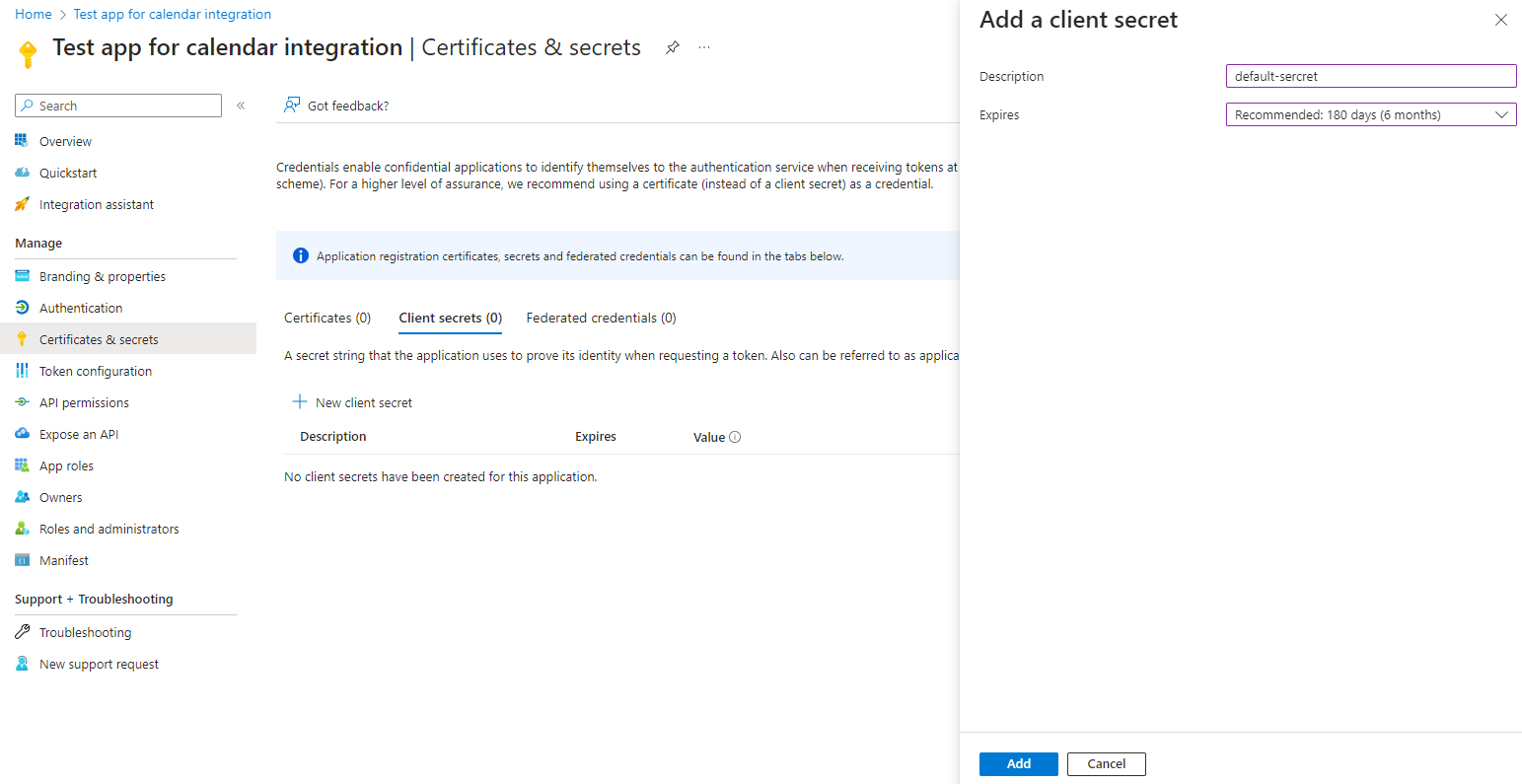

Add a new client secret

At Certificates & secrets create a new client secret and copy the Value (not the Secret ID). You will need this secret in a later step, referred to as Client Secret.

caution

Check the secret expiration, because after that Wallboard won't be able to request new tokens and the integration will be broken.

On expiration there is an option in Wallboard to update the secret on the credential.

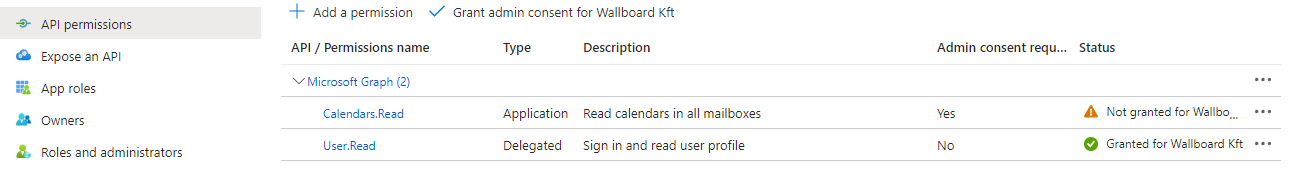

Grant admin consent

Using certain permissions requires admin consent. There is an indicator for it in the Admin consent required column. In order to grant admin consent click on the Grant admin consent for [My Company name] button at the API permissions menu.

Important

In case of service principals, grant admin consent through the Azure AD console as detailed above.

Granting admin consent during the browser sign-in flow instead can result in a token that is missing the required scopes, so we highly recommend granting admin consent to the application before configuring anything in Wallboard.

Set up connection in Wallboard

1. Add new Microsoft credential
2. Select the scope
3. Set the tenant type to Service Principal
4. Fill Client ID and Client Secret
5. Click on Authenticate
6. Follow the steps in the pop-up
