How to setup XW-L9 X-Wave LEDs with Brightsign devices

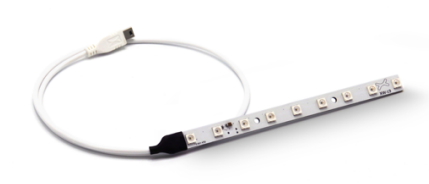

In this tutorial We will use Nexmosphere's XN-185 Xperience controller (USB connection) with XM-L9 X-Wave LED module with a Brightsign device.

Please note, in order to use Sensors and Sensor events, Premium (ENTERPRISE) license is required.

Serial Communication​

Some devices do not support USB sensoring, they can communicate via serial (RS-232) cable only.
To use serial communication, you have to use XN-180 Xperience controller and serial-jack cable!

Learn more: SERIAL (RS-232) communication

Setup & Configuration​

User manual for Nexmosphere's XN-185 Xperience controller and XM-L9 X-Wave LED module
  • Connect the Xperience controller to the device
  • Navigate to Devices menu, then select the device where you want to use the sensors.
  • Open the device settings by clicking on the icon

OR

  • Click on the device card, then Select Settings tab
  • Find sensor settings, then set the following sensor configuration:
{
  "services": [
    {
      "uid": "nexmosphere",
      "type": "GENERIC",
      "settings": {
        "rules": [
          {
            "pattern": "(\\w\\d{3}\\w)\\[(\\d*)]",
            "idGroupIndex": 1,
            "valueGroupIndex": 2
          },
          {
            "pattern": "(\\w\\d{3}\\w)\\[(TR|TD)=UID:([A-Za-z0-9]*)]",
            "idGroupIndex": 1,
            "eventGroupIndex": 2,
            "valueGroupIndex": 3
          },
          {
            "pattern": "(\\w\\d{3}\\w)\\[(\\w*)=([A-Za-z0-9]*)]",
            "idGroupIndex": 1,
            "eventGroupIndex": 2,
            "valueGroupIndex": 3
          }
        ]
      },
      "connection": {
        "port": "2",
        "parity": 0,
        "baudrate": 115200,
        "dataBits": 8,
        "stopBits": 1,
        "flowControl": 0
      }
    }
  ]
}
SHOW CONSOLE WINDOW (optional)

After you sat the configuration, enable the Show console window on your device, when the content sends out the sensor event, it will show the Value as a proof of a successful delivery..

Content creation​

  • Create a 3-page content

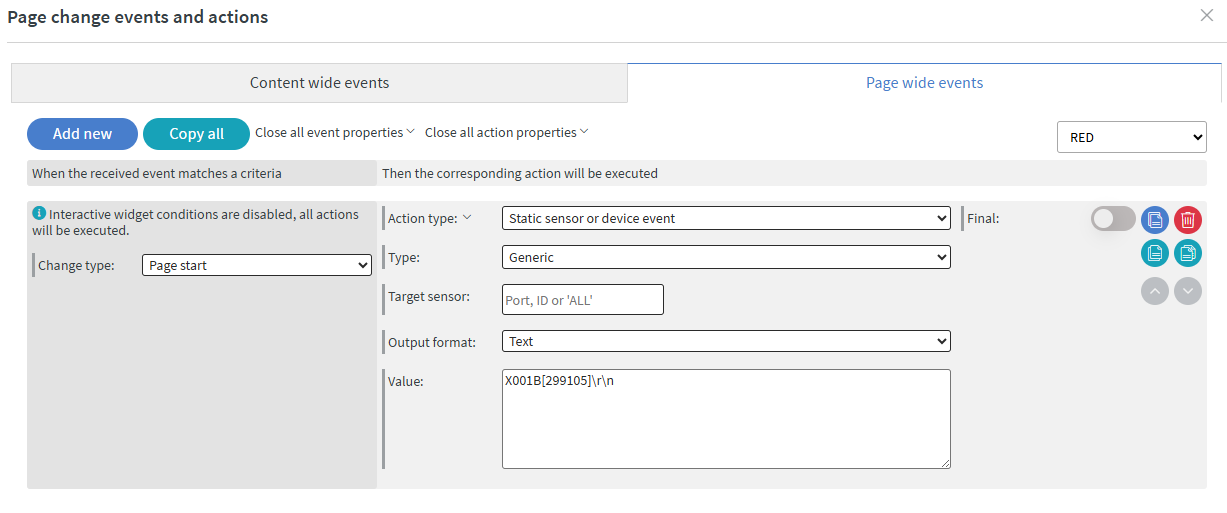

  • Navigate to Content → Properties → Page Change Events


  • Click Page-Wide Events
  • Select the page where you want the sensor event to trigger
  • Click Add New Event
  • Set the Change Type to: Page Start
  • Set the Action Type to: Static Sensor or Device Event
  • For Sensor Type, select: Generic
  • Set the Output Format to: Text
  • In the Value box, enter the command or data you want to send to the sensor

What should I enter the value box?​

Here is a basic description, how the sensor command looks like:


Please note that \r\n is not necessary for android and windows devices.

In our content for example the red color command looks like this:

X001B[299105]\r\n

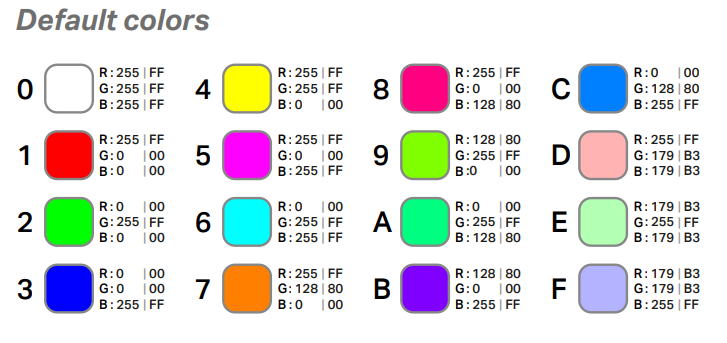

In our content we manipulated the color label to change the LED color to match the background color.


For more information about color manipulation, read the official user manual: XW-L9 LED sensor

Downloadable Content​

Try it out!

Nexmoshere X-Wave L9 content
